Name: Sewer Force Mains

Display Field: INSTALLDATE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Separated and combined sewer pressure mains. Last update date shows the last time each assest was manipulated in any way. Install update source is how the install date was added into GIS. Last editor should show who the last person to manipulate the assest was. Install date gives an estimation of when each asset was actually installed in the ground, not put into GIS. Update source is the accuracy of each asset in our GIS system, GPS-SURVEY-GRADE is the most accurate form of data we have available.

Service Item Id: b9fae78d40684cc4aee5ff7ac6e39c18

Copyright Text: UNKNOWN

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 577791

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2916046.7909775823
YMin: 6784026.621583059
XMax: 2978340.0026769936
YMax: 6866834.719746068
Spatial Reference: 102738  (2276)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [170, 255, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: Facility Identifier, length: 20 )
• INSTALLDATE ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 20 , Coded Values: [ABS: ABS Plastic] , [AC: Asbestos Cement] , [ASP: Asphalt] , ...34 more... )
• DIAMETER ( type: esriFieldTypeDouble, alias: Diameter , Coded Values: [0.75: 3/4"] , [1: 1"] , [1.25: 1 1/4"] , ...36 more... )
• WATERTYPE ( type: esriFieldTypeString, alias: Water Type, length: 30 , Coded Values: [Treated: Treated Water] , [Combined: Combined Waste Water] , [Potable: Potable Water] , ...6 more... )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• ACTIVEFLAG ( type: esriFieldTypeSmallInteger, alias: Active Flag , Coded Values: [0: False] , [1: True] )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By , Coded Values: [1: Tyler] , [2: Smith County] , [3: TxDot] , ...22 more... )
• MAINTBY ( type: esriFieldTypeSmallInteger, alias: Managed By , Coded Values: [1: Our Agency] , [-1: Private] , [-2: Other] )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• UPDATESOURCE ( type: esriFieldTypeString, alias: UPDATESOURCE, length: 35 , Coded Values: [PDF As-Built HQ w/ Coordinates: PDF As-Built HQ w/ Coordinates] , [PDF As-Built Manually Georeferenced: PDF As-Built Manually Georeferenced] , [GPS Survey Grade: GPS Survey Grade] , ...11 more... )
• MAPGRID_ID ( type: esriFieldTypeString, alias: Historic Mapgrid ID, length: 12 )
• PIPE_COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 150 )
• TO_MH ( type: esriFieldTypeString, alias: TO_MH, length: 30 )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 250 )
• INSTALLDATESRC ( type: esriFieldTypeString, alias: Install Update Source, length: 50 , Coded Values: [CAD: CAD] , [Pre-CAD Blueprint: Pre-CAD Blueprint] , [Subdivision Recd Date: Subdivision Recd Date] , ...5 more... )
• AssetID ( type: esriFieldTypeString, alias: Asset ID, length: 30 )
• GRIDREF ( type: esriFieldTypeString, alias: GRIDREF, length: 7 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• ABANDONED ( type: esriFieldTypeString, alias: Abandoned, length: 5 , Coded Values: [Yes: Yes] , [No: No] )
• SPLITFROM ( type: esriFieldTypeString, alias: SplitFrom, length: 30 )
• MERGEDTO ( type: esriFieldTypeString, alias: MergedTo, length: 30 )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

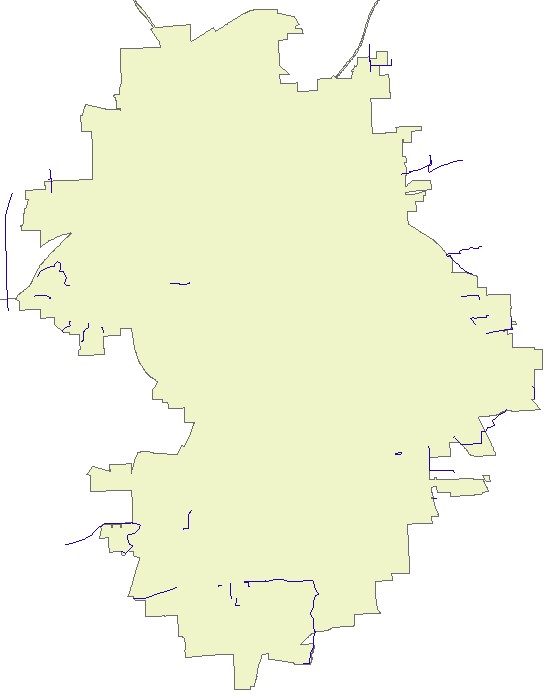

  Iteminfo   Thumbnail   Metadata
